Standalone

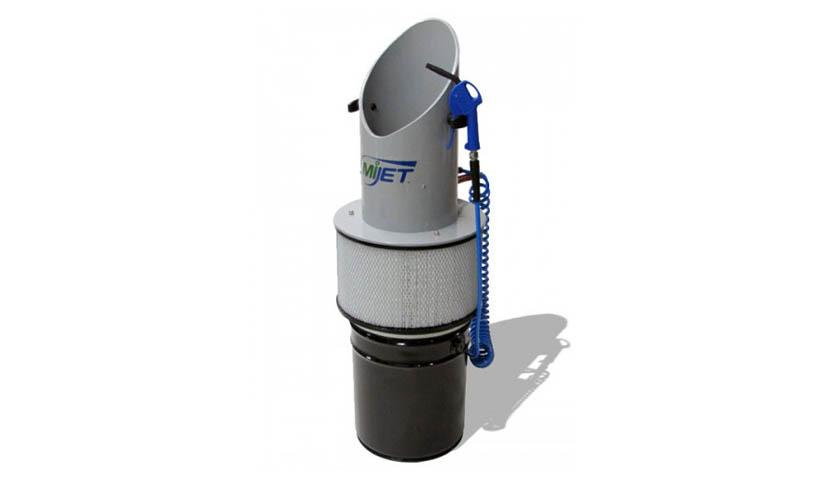

8″ Diameter MiJET – Angled Top

This MiJET standalone unit has an ergonomically designed angled opening that creates easy access for cleaning parts. This unit is powered by air, is used near CNC machines or inspection stations to clean oily residue and chips from parts, then captures that residue with vacuum into a container for recycling. A specially designed, patent pending valve allows an operator to pull the trigger on an air nozzle which simultaneously actuates both an air jet and suction. The air jet allows localized cleaning of parts, while the suction pulls the atomized fluid particles and chip residue downward into a removable container below.

Benefits:

• Captures coolant and chips when blowing off parts … it doesn’t end up on your equipment, floors, facility, or operators!
• Reduces cleaning expense and time.
• Reduces slips, trips, and falls.
• Allows cursory inspection of clean parts.
• Allows recycling of expensive lubricant.
• Improves inside air quality to help meet OSHA and NIOSH limits on airborne mist.

Features:

• Ready to use with one existing air line.
• One touch actuation.
• Small footprint (14″ diameter).
• Portable for more than one application.
• No electricity required.

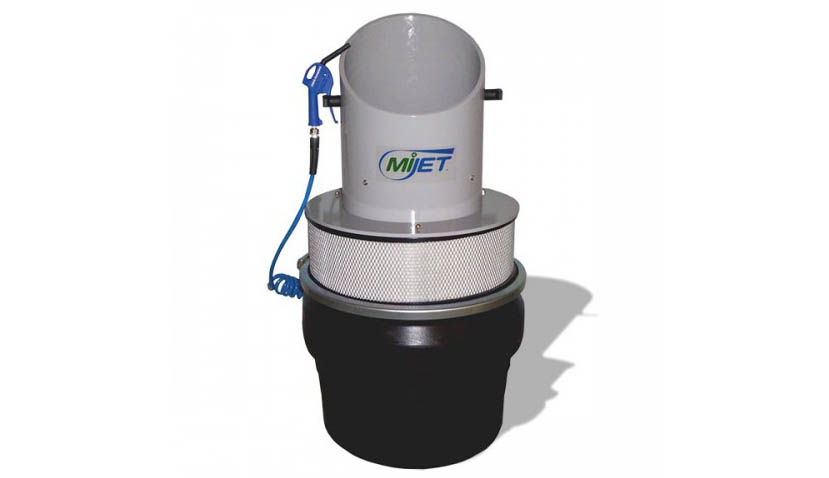

12″ Diameter MiJET – Angled Top

This MiJET standalone unit has an ergonomically designed angled opening that creates easy access for cleaning exta wide parts. This unit is powered by air, is used near CNC machines or inspection stations to clean oily residue and chips from parts, then captures that residue with vacuum into a container for recycling. A specially designed, patent pending valve allows an operator to pull the trigger on an air nozzle which simultaneously actuates both an air jet and suction. The air jet allows localized cleaning of parts, while the suction pulls the atomized fluid particles and chip residue downward into a removable container below.

Benefits:

• Captures coolant and chips when blowing off parts … it doesn’t end up on your equipment, floors, facility, or operators!
• Reduces cleaning expense and time.
• Reduces slips, trips, and falls.
• Allows cursory inspection of clean parts.
• Allows recycling of expensive lubricant.
• Improves inside air quality to help meet OSHA and NIOSH limits on airborne mist.

Features:

• Ready to use with one existing air line.
• One touch actuation.
• Includes Prevost OSHA compliant air nozzle and 13 ft. spiral hose with swivel end fitting.
• 22″ diameter footprint.
• Portable for more than one application.
• No electricity required.

Work Stations

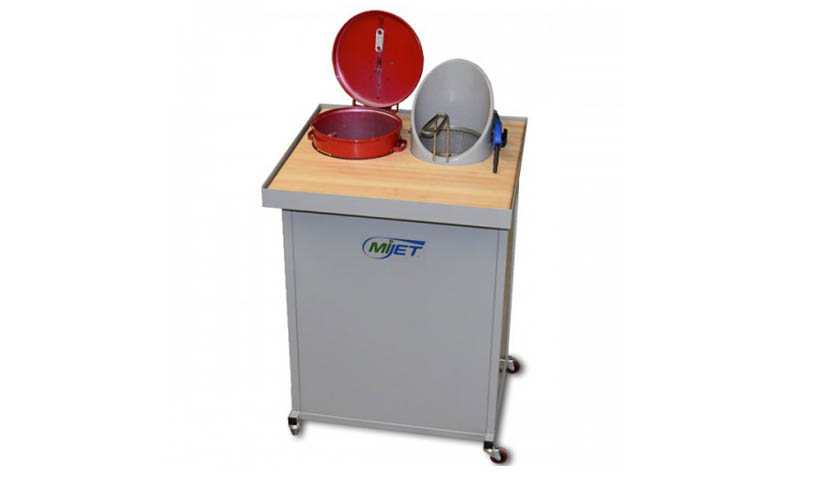

MiJET Workstation – 8″ Diameter

MiJET Deluxe Workstation for 8″ dia. MiJET – includes Solvent Container & Parts Basket. Includes Table with butcher block top and wheels, enclosed on three sides with retainer hook for easy removal of container for emptying.

Includes the following MiJET products:

• 8″ diameter Angled Top MiJET Unit  – 14-8FL-545
• Solvent container, 2 gal. – 15-100
• Solvent Parts Basket, fine mesh, single bent handle – 15-109

Workstation alone – 35″ H x 24.25″ L x 24.25″ D

MiJET Workstation – 12″ Diameter

MiJET Deluxe Workstation for 12″ dia. MiJET – includes Solvent Container & Parts Basket. Includes Table with butcher block top and wheels, enclosed on three sides with retainer hook for easy removal of container for emptying.

Includes the following MiJET products:

• 12″ diameter Angled Top MiJET Unit  – 15-12SX-20ANG
• Solvent container, 3.5 gal. – 15-101
• Solvent Parts Basket, fine mesh, single bent handle, 10.13″OD – 15-107

Workstation alone – 35″ H x 36″ L x 24.25″ D

Wash Stations

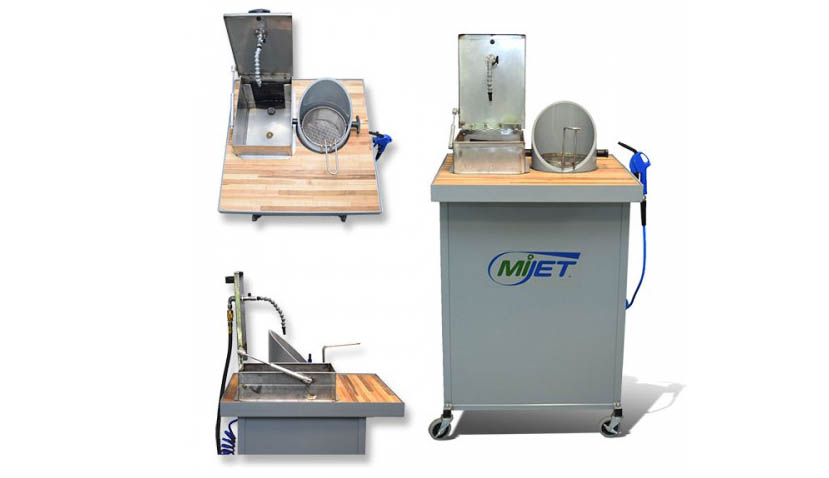

8″ Diameter MiJET Wash Stations with Stainless Steel Dip Container

MiJET Deluxe Wash Station for 8″ dia. MiJET – with a rectangular Stainless Steel Solvent Container & Parts Basket. Includes table with butcher block top and wheels, enclosed on three sides with retainer hook for easy removal of container for emptying.  Loc-Line nozzle, flow control, pneumatic fluid pump, fluid filter, and hand-held air nozzle.

Part Number: 16-08-WSH-SS
Dimensions: 35” H x 24.25”L x 24.25” Depth
Weight: 142 lbs.

Benefits:

• Rectangular Stainless Steel Solvent Contaner
• Stainless Steel lid has built-in fluid spout held open with a pneumatic spring, which closes completely to minimize evaporation.
• Includes a pneumatic recirculating fluid pump, fluid filter, Loc-Line nozzle, and flow control.
• Combines the functionality of washing and drying with a 8” dia. MiJET^®, parts washing dip container, and fluid pump for washing parts.
• Convenient for parts washing, drying, gauging, or inspection stations.
• Recommended for parts that are 5 inches or smaller.

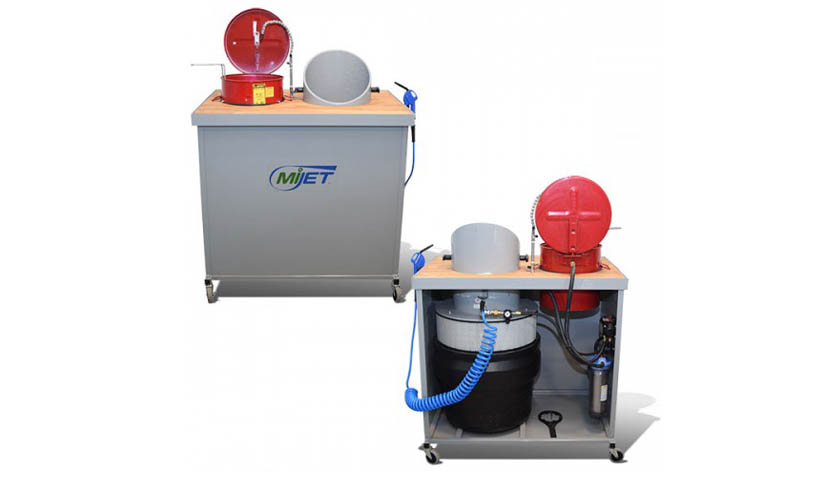

12″ Diameter MiJET Wash Station

MiJET^® Deluxe Wash Station for 12″ dia. MiJET – with Solvent Container & Parts Basket. Includes table with butcher block top and wheels, enclosed on three sides with retainer hook for easy removal of container for emptying.  Loc-Line nozzle, flow control, pneumatic fluid pump, fluid filter, and hand-held air nozzle.

Part Number: 15-12-WSH
Dimensions: 35” H x 36”L x 24.25” Depth
Weight: 142 lbs.

Benefits:

• Combines the functionality of washing and drying with a 12” dia. MiJET^®, parts washing dip container, and fluid pump for washing parts.
• Includes a pneumatic recirculating fluid pump, fluid filter, Loc-Line nozzle, and flow control.
• Convenient for parts washing, drying, gauging, or inspection stations.
• Recommended for parts that are 10 inches or smaller.
