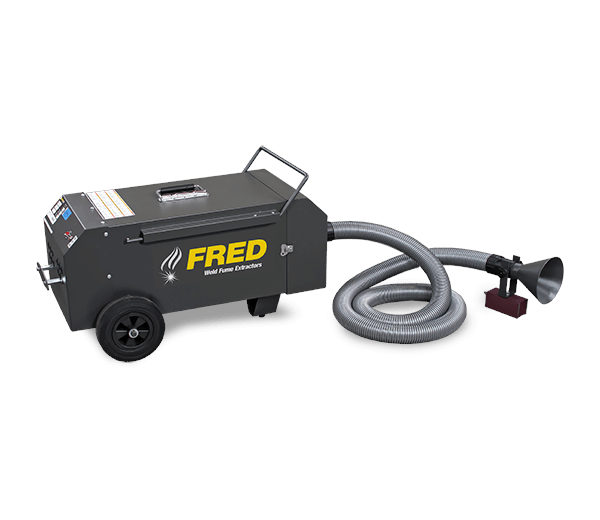

Diversitech Fred Mini-Vac II
$1,992.00
A compact, portable fume extractor designed for light to medium-duty welding and industrial air purification applications.
Product Details
The Diversitech FRED Mini-Vac II is a compact and portable fume extractor built for light to medium-duty welding and industrial air filtration. Equipped with dual 1.0 HP motors, it offers adjustable airflow between 105 and 210 CFM, allowing operators to select high or low settings to meet varying application demands.
FEATURES:
Engineered for light to medium-duty welding applications
Quick-attach design compatible with MIG fume extraction guns
Lightweight and highly portable for easy maneuverability
High-efficiency nanofiber MERV 15 filter cartridge
Magnetic nozzle base ensures secure and stable placement
Filter service indicator alerts for timely maintenance
SPECIFICATIONS:
Airflow: Adjustable between 105 and 210 CFM.
Power: Dual 1.0 HP motors.
Voltage: 120V, 60Hz.
Dimensions: 16.5″ W x 18.5″ H x 35.5″ D.
Weight: Approximately 60 lbs.
Noise Level: Approximately 70 dBA.
Technical Specifications
| Weight | 60 lbs |
|---|---|
| Dimensions | 35.5 × 16.5 × 18.5 in |
| Manufacturer/Brand | Diversitech, Fred |
| Contaminent | Fumes, Smoke |
| Application / Process | Additive Manufacturing / 3D Printing, Metal Fabrication |
| Capture Method | Source |
| Mobility | Portable |
| CFM | <1000 |
| Filter Type | Media |
