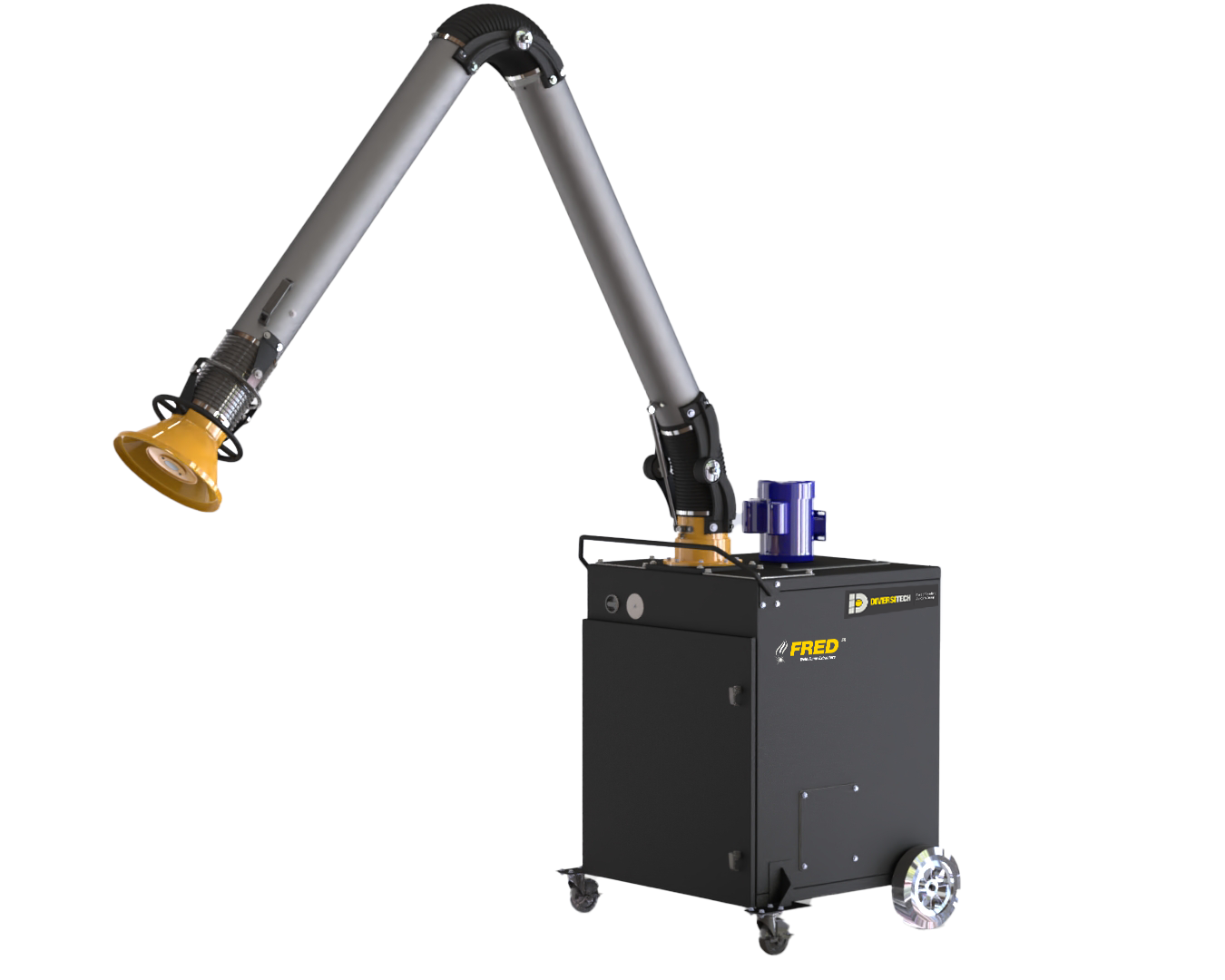

Diversitech Fred Sr. 2 Self-Cleaning Fume Extractor (230V)

A portable fume extractor which delivers 2500 CFM via a 5 HP blower for powerful source capture. Its dual arms are independently adjustable, and a MERV 15 Nanofiber filter removes particles down to 0.5 microns. The ICS-360? self-cleaning system boosts filter life and reduces maintenance costs.

The FRED Sr. II Dual-Arm Portable Fume Extractor is a high-performance welding smoke extractor designed to eliminate smoke, dust, and fumes at the source. A powerful 5 HP blower delivers 2500 CFM, maintaining strong face velocity across two independently adjustable capture arms. Equipped with a MERV 15-rated Nanofiber filter, it captures particles as small as 0.5 microns, ensuring cleaner air in welding bays and other industrial environments. The unit features our patented ICS-360° Injection Self-Cleaning System, which enhances filter performance and longevity while simplifying maintenance, reducing downtime and overall ownership costs.

FEATURES:
Dual, Externally Articulated Capture Arms: Provides flexibility and precision in fume capture
ICS-360? Self-Cleaning System: Reduces maintenance time and extends filter life
MERV 15 Nanofiber Filter: High-efficiency filtration for cleaner air
Rotary Starter with Power Cord & Casters: Ensures easy setup and mobility

SPECIFICATIONS:
Motor: 5.0 HP TEFC (Totally Enclosed Fan Cooled) motor
Airflow: 2500 CFM (Cubic Feet per Minute)
Voltage Options:
230V/3/60Hz
460V/3/60Hz
575V/3/60Hz
Capture Arms: Dual, externally articulated arms available in 10′ or 13′ lengths
Arm Diameter: 6 inches
Filter: 21-inch Nanofiber filter rated at MERV 15, capturing particles as small as 0.5 microns
Self-Cleaning System: ICS-360° Injection Self-Cleaning System for enhanced filter life and efficiency
Power Cord: 15 feet
Mobility: Equipped with casters for easy movement
