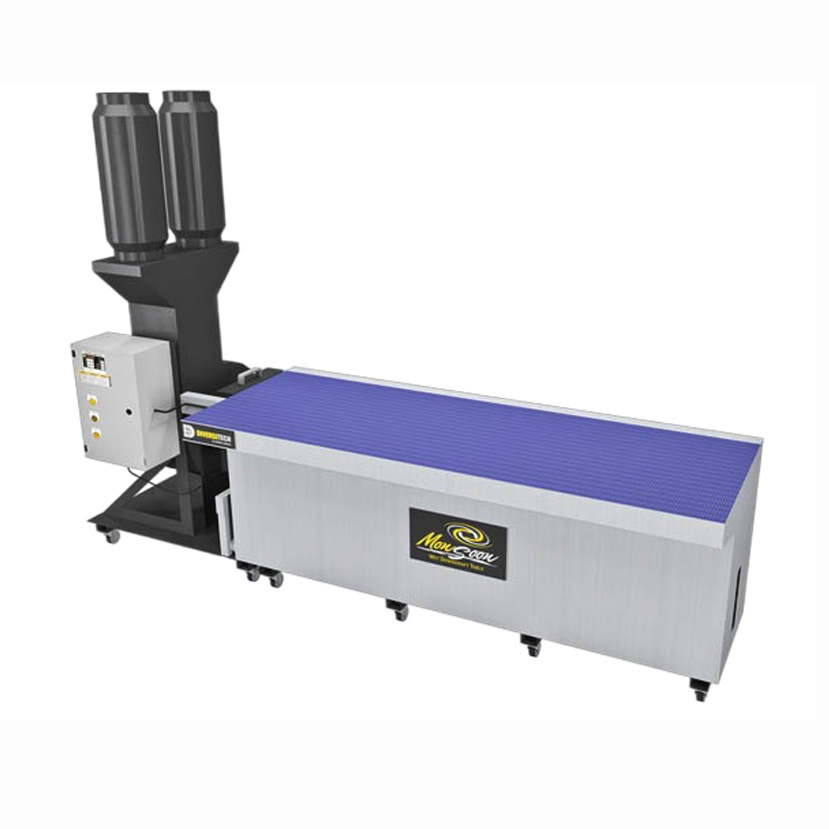

DiversiTech Monsoon 3’x8′ Wet Downdraft Table

Self-contained wet downdraft table with auto-water fill features a 97″ x 36″ work surface

The Monsoon 3′ x 8′ safely captures combustibles by pulling contaminated air through the ventilated work surface and moving them into a torrent of water. The dust particles then bond with suspended water droplets before draining down to the bottom of the collector for safe removal. Interior baffling creates the required turbulence to maximize filtration efficiency. A mist-eliminator afterfilter prevents the unit from exhausting humidity and water into the workspace.

The Monsoon 3′ x 8′ Wet Downdraft Table includes a 12″ integrated extended overhang that allows operators to sit ergonomically at the table surface. The cabinet’s stainless steel construction guards against corrosion and the collector’s internal components can be removed for easy cleaning.

Designed for the safe collection of combustible metal dusts, ideal applications include: aluminum, magnesium, titanium, grinding & deburring, sanding & finishing, powder mixing and buffing.

Benefits

• Capture-at-source for cleaner air
• Industrial swivel castors included for portability
• Compliant with OSHA and NFPA guidelines for combustible dust
• Small footprint, easy to use
• Removable water-tree for easy cleanout

Features

• Flexible 96″ x 36″ Worksurface
• High Capture Face Velocity (230 FPM)
• 15 HP TEFC Motor producing 6500 CFM of Airflow
• Stainless Steel Anti-Corrosion Construction
• Auto-Level Water Control System
