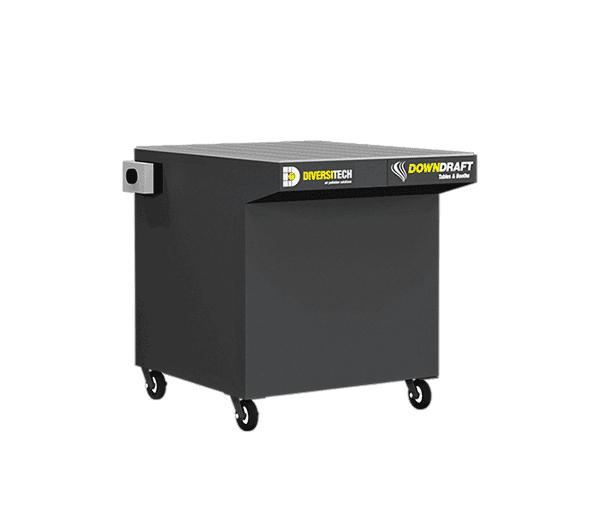

DiversiTech Monsoon Mini Wet Downdraft Table
$15,600.00
Self-contained wet downdraft table with auto-water fill features a 30″ x 36″ work surface
Product Details
The Monsoon Mini Wet Downdraft Table captures combustible dust safely and efficiently at the source. Compact, portable, and self-contained, it requires no ducting. Its high face velocity, stainless steel build, and water-based filtration make it ideal for metal dust, sanding, 3D printing, and more.
BENEFITS:
Capture-at-source for cleaner air
Industrial swivel castors included for portability
Compliant with NFPA guidelines for combustible dust
FEATURES:
Flexible 30″ x 36″ Worksurface
High Capture Face Velocity (300 FPM)
3 HP TEFC Motor producing 1200 CFM of Airflow
Stainless Steel Anti-corrosion Construction
Low Water auto-shutdown
Blue Rubber Grid Matting
Manual Water Refill
SPECIFICATIONS:
Worksurface Dimensions: 30″ W x 36″ L
Nominal Airflow: 1200 CFM
Average Face Velocity: 300 FPM
Motor: 3.0 HP TEFC (Totally Enclosed Fan Cooled)
Voltage Options: 230V, 460V, or 575V, 3-phase, 60Hz
Full Load Amperage (F.L.A.):
230V: 9.6 A
460V: 4.8 A
575V: 3.9 A
Footprint: 60″ W x 39″ H x 42″ L
Weight: Approximately 542 lbs
Noise Level: 72 dB at 5 feet
Construction: Stainless steel for corrosion resistance
Water Fill System: Manual
Water Tank Capacity: 23 gallons
Control Panel: NEMA 12 with overload protection
Optional Mist Eliminator Afterfilter: 99% efficiency at 3 microns
Standard Accessories: Blue rubber grid matting, industrial swivel casters
Technical Specifications
| Dimensions | 36 × 30 × 39 in |
|---|---|
| Manufacturer/Brand | Diversitech, Monsoon |
| Contaminent | Combustable Dust, Dust |
| Application / Process | Additive Manufacturing / 3D Printing, Composites & Plastics Manufacturing, Metal Fabrication, Woodworking |
| Capture Method | Downdraft |
| Mobility | Portable |
| CFM | <1000 |
| Filter Type | Media |
