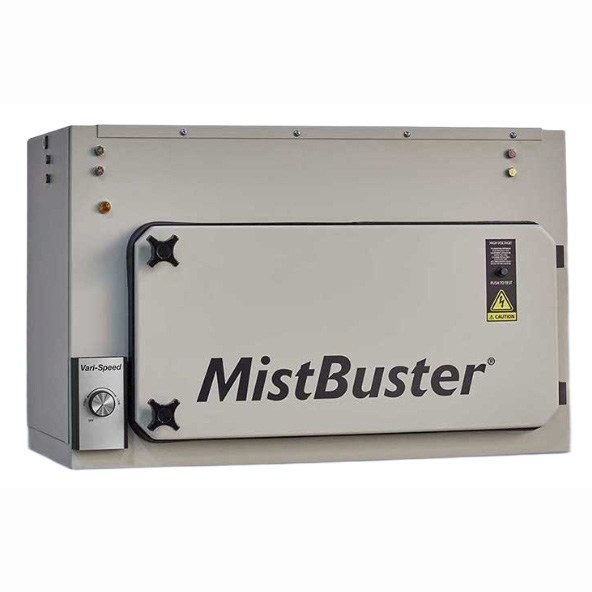

MistBuster 500

A compact, high-efficiency mist and smoke collector ideal for metalworking tasks like CNC machining, grinding, and EDM. Using electrostatic precipitation and optional media filters, it effectively captures airborne contaminants, ensuring cleaner air and helping maintain compliance with safety standards.

The MistBuster® 500 is a precision-engineered, compact mist and smoke extraction system optimized for demanding metalworking environments including CNC machining, grinding, and electrical discharge machining (EDM). It employs advanced electrostatic precipitation technology combined with optional multi-stage media filtration to effectively capture and remove airborne particulate matter, metal mist, smoke, and aerosols at the source. This dual-filtration approach ensures superior air purification, promotes a safer and healthier work environment, and facilitates compliance with stringent industrial air quality and safety regulations.
Available in white or gray; 120V or 240V

FEATURES:
Energy-Efficient Operation: ErP-compliant, self-regulating, dual-voltage solid-state power supply
Versatile Mounting Options: Machine mount, pedestal stand, ceiling mount, or wall mount
Variable Speed Control: Adjustable airflow to match application needs
Enhanced Filtration: Optional HEPA or ESF post-filters for improved air quality
Ease of Maintenance: Quick-release, quarter-turn fasteners for easy access to internal components

SPECIFICATIONS:
Airflow: Variable up to 500 CFM
Power Input: 115 VAC, 60 Hz, 1-phase, 2.5 amps (120V); 240 VAC, 60 Hz, 1-phase, 1.25 amps (240V
Motorized Impeller: Backward-curved, vibration-free, direct drive rated at 710 CFM @ 0″ w.g.
Filtration Stages:
4″ aluminum mesh impinger
AQE Advantage? electronic cell
Optional HEPA filter (99.97% efficiency), ESF filter, or carbon module
Cabinet: 16 gauge steel with chemical-resistant baked enamel finish (ivory or gray)
Sound Level: 74 dBA @ 3′; 70 dBA @ 6′
Power Cord: 10-foot molded plug
Warranty: 36-month limited warranty
