MistBuster 850

A high-efficiency electrostatic mist and smoke collector designed for CNC machining, grinding, and EDM. It features advanced filtration, energy-efficient operation, and flexible mounting options for effective removal of airborne contaminants and ensures cleaner air while meeting industrial air quality standards.

The MistBuster® 850 is a precision-engineered electrostatic mist and smoke collection system designed for high-load metalworking applications, including CNC machining, grinding, and electrical discharge machining (EDM). Utilizing a multi-stage filtration process, including a high-capacity electrostatic precipitator and optional HEPA or activated carbon modules, it effectively captures submicron particulate, oil mist, and smoke. The unit delivers up to 850 CFM of airflow while maintaining low power draw and minimal acoustic impact. Its modular design supports multiple mounting configurations (machine, wall, ceiling, or stand) and includes a patented coolant selector switch for optimized performance across water-soluble and oil-based coolant operations. The system ensures OSHA and NIOSH-compliant air quality in precision manufacturing environments.
Available in white or gray; 120V or 240V

FEATURES:
Electrostatic Precipitation Technology: Captures mist, smoke, and metal particles with high efficiency

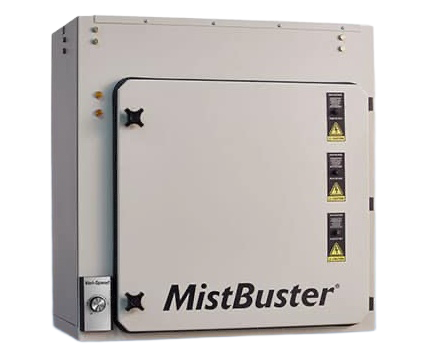

Shown in white.
Patented Coolant Selector Switch: Easily switch between water-soluble and oil-based coolants
Energy-Efficient Operation: Draws as little as 1.08 amps under full load
Versatile Mounting Options: Direct machine mount, pedestal stand, ceiling mount, or wall mount
Easy Maintenance: Quick-release, quarter-turn fasteners for fast side-panel access
Durable Construction: Sealed electrical compartment protects components from contaminants

SPECIFICATIONS:
Airflow Capacity: Variable up to 850 CFM
Power Input: 115 VAC, 60 Hz, Single Phase, 4.3 Amps (120V);
Power Input: 240 VAC, 60 Hz, Single Phase, 2.15 Amps (240V)
Filtration Efficiency: Up to 99.4% on submicron particles; optional HEPA filter achieves 99.97% efficiency
Filtration Stages:
4? aluminum mesh impinger
AQE Advantage electronic collector cell (long life)
High-efficiency electronic collector cell
Optional additional high-efficiency electronic collector cell
Optional HEPA filter, ESF filter, or carbon module
Cabinet Construction: 16-gauge steel with chemical-resistant powder-coated enamel finish
Inlet Opening: 16.62″ x 9.08″
Sound Level: 74 dBA @ 3′; 70 dBA @ 6′
