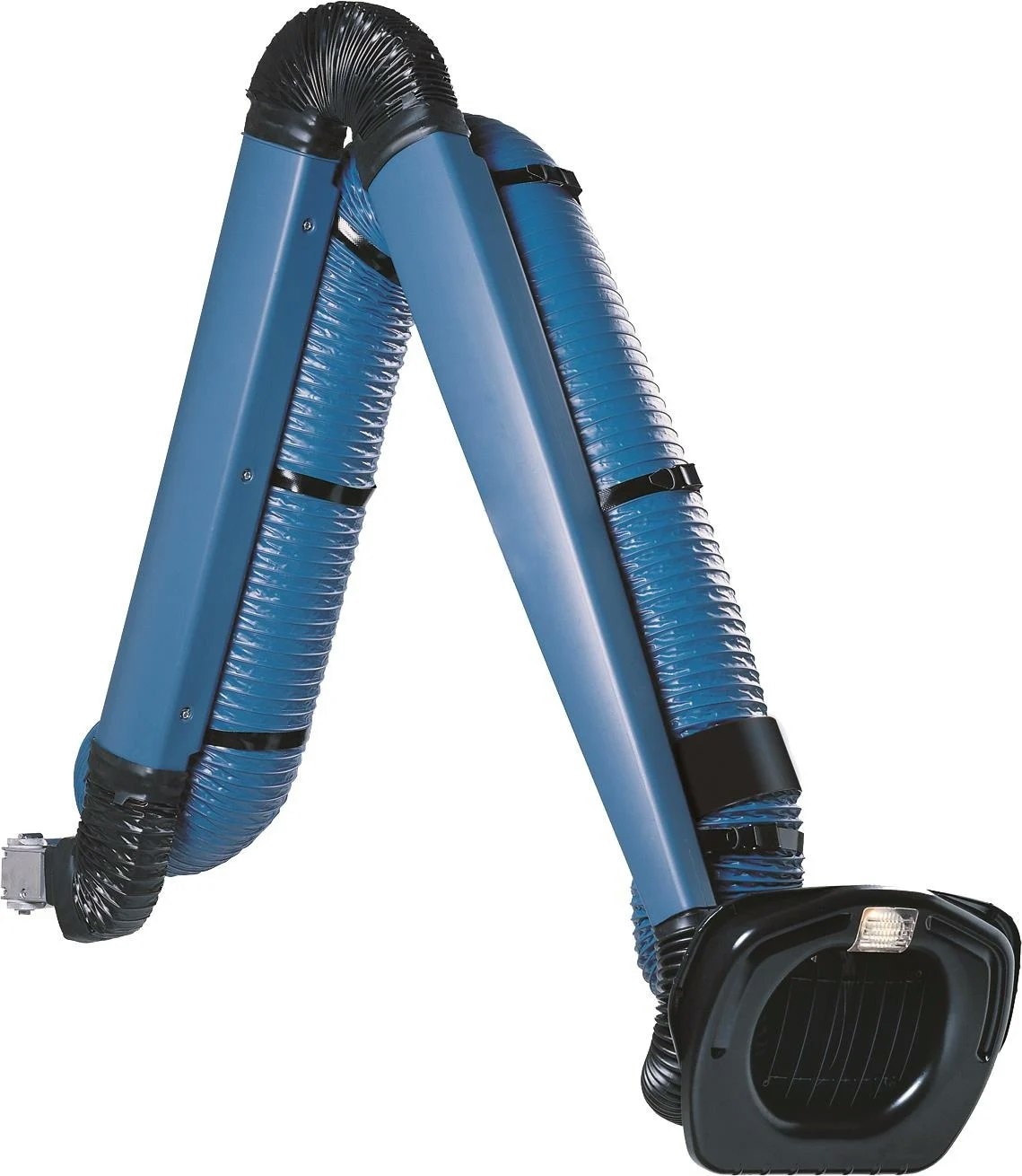

Nederman Extraction Arm NEX-HD- 5m (16′)

Heavy-duty 8?in. extraction arm with up to 1,200?CFM airflow, ?360? swivel, encapsulated supports, and a high-temperature aluminum hood designed for extreme welding, grinding, dust, and vapor applications. Note: this is the 16′ arm

The Nederman Extraction Arm NEX-HD is built for the most demanding industrial environments designed to remove heavy duty dust, vapor and fume production applications. Its 8-inch diameter arm offers airflow rates between 600 and 1,200 CFM, ensuring efficient capture of contaminants even in high-output processes

The NEX-HD features a fully encapsulated support structure for added durability in harsh environments, and an integrated 360-degree swivel that enables unrestricted positioning. The premium aluminum hood withstands extraction air temperatures up to 250℉, maintaining structural integrity under thermal stress

It supports flexible mounting configurations wall, ceiling, rail, or extension bracket and can be outfitted with optional accessories, such as spark filters, light kits, and reinforced covers, adapting to a variety of workspaces and safety requirements.

Designed for heavy duty dust, vapors and fume production applications
For production environments: dust, powder (incl. coating) welding, cutting, grinding
Robust support system – Precision balanced, and ultra-easy positioning
Pass thru duct system – Provides maximum airflow with minimal pressure loss
360° heavy-duty swivel for maximum reach and flexibility in all directions
High temp hose and robust lower hose section to withstand sparks, spatter and heat
Can be mounted to wall bracket, extension arm or exhaust rail
Arm diameter: 8″
Recommended Airflow: 600 – 1,200 CFM
Maximum Air Temperature: 250℉
Includes arm, swivel base, hood and integrated damper
