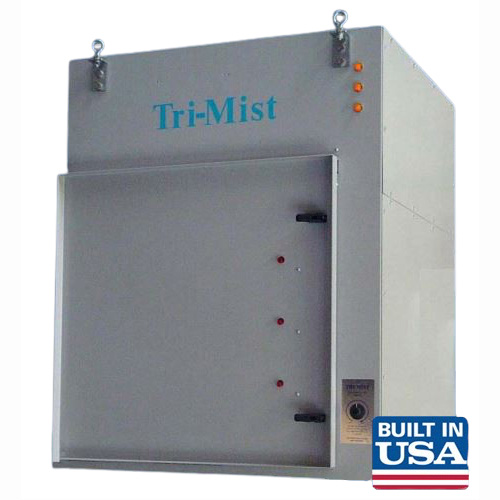

TriMist 1400

A high-capacity, high-efficiency mist and smoke collector for demanding metalworking environments like CNC machining, grinding, and EDM. It uses a triple-pass electrostatic precipitation (ESP) system to capture airborne contaminants without disposable filters, ensuring cleaner air and regulatory compliance.

The Tri-Mist® 1400 is a high-capacity, high-efficiency mist and smoke collector engineered for rigorous metalworking environments such as CNC machining, grinding, and EDM. It employs a triple-stage electrostatic precipitation (ESP) system with extensive collection surface area to capture submicron particulates and aerosols. This advanced filtration technology eliminates reliance on disposable filters, optimizing operational uptime while maintaining superior contaminant removal efficiency to meet stringent industrial air quality standards and regulatory compliance.
Available in 115V, 208-230V, 340-480V models. Price reflects 115V model; contact for additional pricing

FEATURES:
Sealed electrical enclosure for all electronics
Triple-pass ESP for maximum efficiency and collection area
Effective on all metalworking fluids
No disposable filters required
Optional accessories include source capture plenums, machine mount stands, ceiling hardware, and pedestal stands

SPECIFICATIONS:
Dimensions: 26″ W x 26″ D x 32″ H
Weight: 210 lbs (installed)
Airflow Capacity: 50 – 1400 CFM
Efficiency: 99.99%+ per ASHRAE 52.2; 95% DOP efficiency
Filtration Stages:
1st Stage: 4″ thick impinger
2nd Stage: Dual ESP with 212 sq. ft. surface area
3rd Stage: Dual ESP with 212 sq. ft. surface area
4th Stage: Dual ESP with 212 sq. ft. surface area
5th Stage: 2″ thick mist impinger
Impeller: Backward curved, vibration-free, direct drive rated at 1100 CFM @ 0.0″ w.g.
Sound Level: 69 dBA
Electrical Rating: 115 Volts, 600 watts, 5.75 amps
Power Cord: 10-foot power cord with standard plug
Power Supply: Three dual voltage solid-state self-regulating and UL approved
Cabinet: 16-gauge welded steel with chemical-resistant powder paint
Inlet Opening: 16.7″ x 21″
The Tri-Mist? 1400 is a high-capacity, high-efficiency mist and smoke collector engineered for rigorous metalworking environments such as CNC machining, grinding, and EDM. It employs a triple-stage electrostatic precipitation (ESP) system with extensive collection surface area to capture submicron particulates and aerosols. This advanced filtration technology eliminates reliance on disposable filters, optimizing operational uptime while maintaining superior contaminant removal efficiency to meet stringent industrial air quality standards and regulatory compliance.
Available in 115V, 208-230V, 340-480V models. Price reflects 115V model; contact for additional pricing
FEATURES:
Sealed electrical enclosure for all electronics
Triple-pass ESP for maximum efficiency and collection area
Effective on all metalworking fluids
No disposable filters required
Optional accessories include source capture plenums, machine mount stands, ceiling hardware, and pedestal stands

SPECIFICATIONS:
Airflow Capacity: 50 – 1400 CFM
Efficiency: 99.99%+ per ASHRAE 52.2; 95% DOP efficiency
Filtration Stages:
1st Stage: 4″ thick impinger
2nd Stage: Dual ESP with 212 sq. ft. surface area
3rd Stage: Dual ESP with 212 sq. ft. surface area
4th Stage: Dual ESP with 212 sq. ft. surface area
5th Stage: 2″ thick mist impinger
Impeller: Backward curved, vibration-free, direct drive rated at 1100 CFM @ 0.0″ w.g.
Sound Level: 69 dBA
Electrical Rating: 115 Volts, 600 watts, 5.75 amps; 208?230 Volts, 600 watts, 3 amps; 380?480 Volts, 600 watts, amperage varies by voltage
Power Cord: 10-foot power cord with standard plug
Power Supply: Three dual voltage solid-state self-regulating and UL approved
Cabinet: 16-gauge welded steel with chemical-resistant powder paint
Inlet Opening: 16.7″ x 21″
